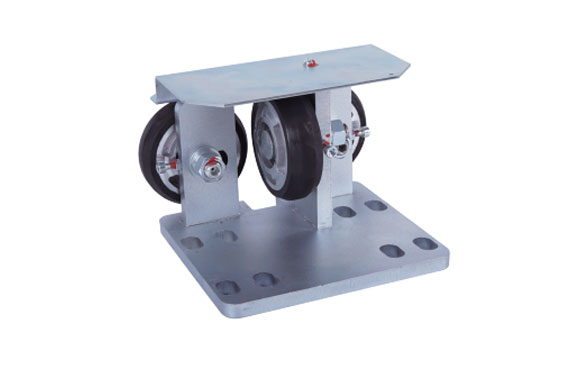

The new type of roller can prevent the elastomer from falling off, improve the service life of the roller, reduce the disassembly and assembly work of the elevator roller by the staff, and save labor costs. It also reduces the time that maintenance personnel stay in the elevator shaft and reduces safety risks.
Dimensions
Technical parameter
Item | Style | Roller Dia. | Rated Speed | Rail Width | Rated Load |
V | Car Rated Load (Sug.) | ||
CAR | CWT | K | Normal | Braking | |||||
GD80-G05 | Fixed | Ø80mm | 1.0m/s | 2.0m/s | 5mm | 200N | 1000N | 18mm | 1200KG |
GD80-G09 | Fixed | Ø80mm | 1.0m/s | 2.0m/s | 9mm | 200N | 1000N | 18mm | 1200KG |
GD80-G10 | Fixed | Ø80mm | 1.0m/s | 2.0m/s | 10mm | 200N | 1000N | 18mm | 1200KG |
GD80-G16 | Fixed | Ø80mm | 1.0m/s | 2.0m/s | 16mm | 200N | 1000N | 25mm | 1200KG |
